Article number: T47IN-PRX
All mentioned prices in our webshop are included VAT
T47IN-PRX

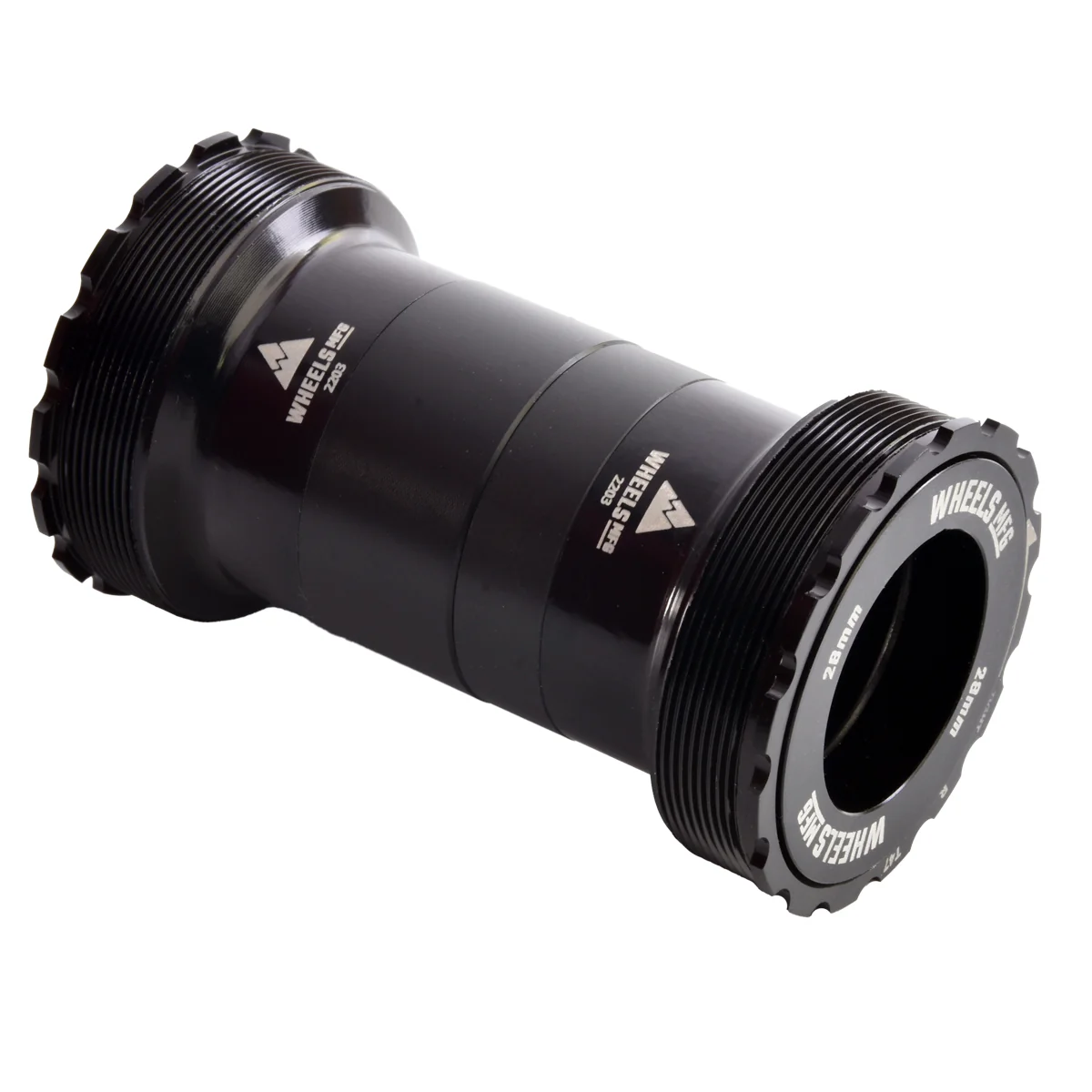

T47 threaded BB cups for T47 frames and M30 28/30mm spindle diameter Praxis - compatible cranks. Cups have outboard bearings, and can be used in BB shells with widths from 68mm to 100mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.
T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
Bottom Bracket Includes:
BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers
1 - 2.5mm crank spindle spacer
1 - 28mm Insert
Bearings: Enduro ABEC-3
Color: Purple
Bottom Bracket/Frame Interface: T47
Bottom Bracket Shell Width (mm): 68mm - 100mm
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 28/30mm
Over Bearing Width: 90.8mm in 68mm wide shell*
Tool Pattern: 48.5mm x 16-notch
Weight: 155g
Packaged for retail display
Compatible with the following Bottom Bracket Standards (47x1.0mm Threaded BB shell) and 29mm diameter spindle SRAM DUB compatible cranks:
T47 shell with width of 68mm and Praxis Cranks
T47 shell with width of 73mm and Praxis Cranks
T47 shell with width of 100mm and Praxis Cranks
Download PDF information: 1771244382t47-bb-30mm-instructions.pdf
