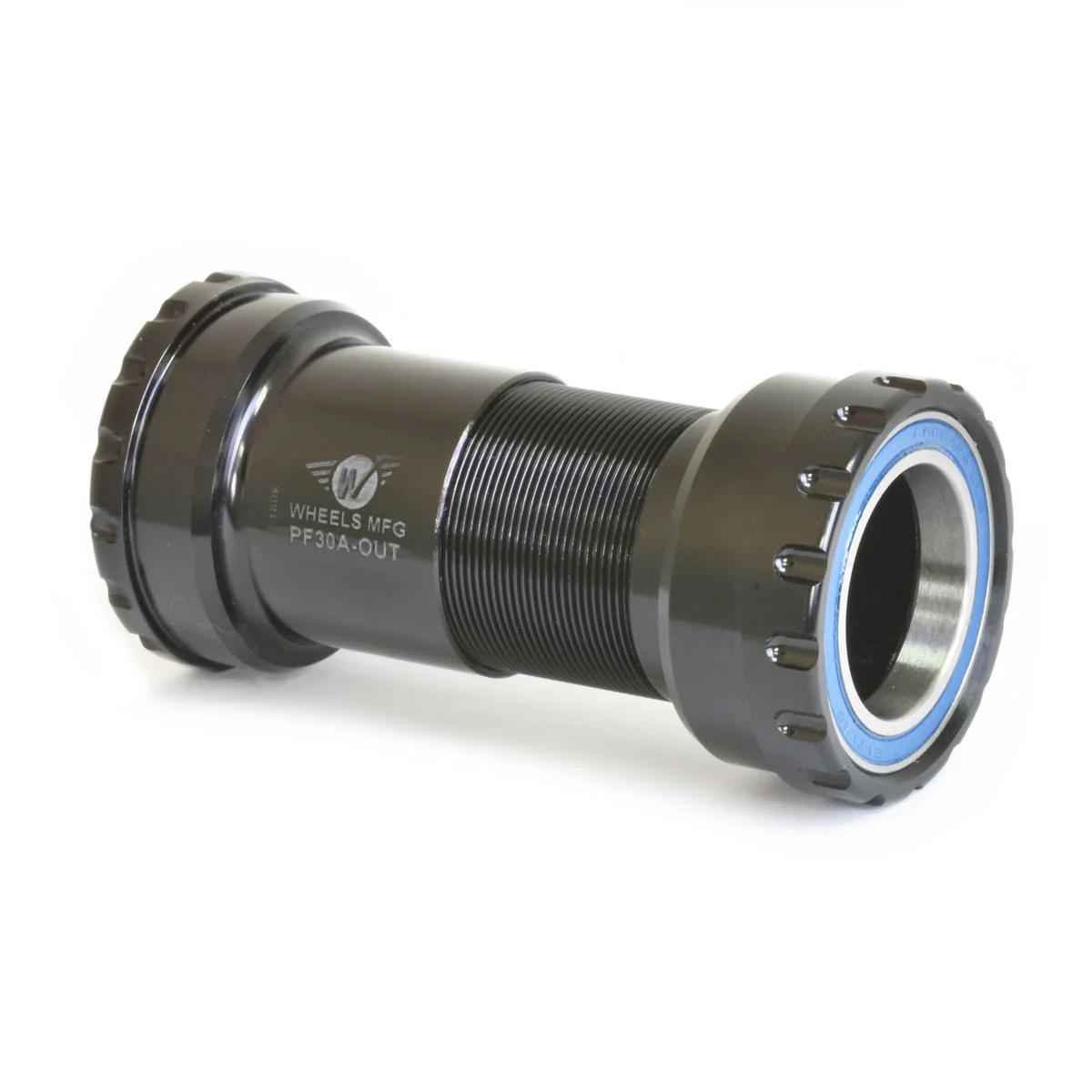

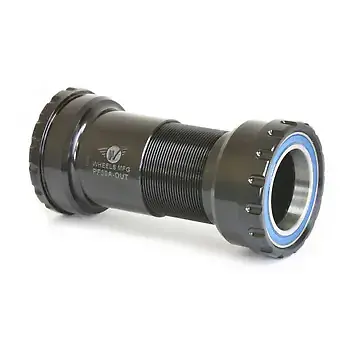

PF30A-OUT-30MM

€ 1,64

Article number: PF30A-OUT-30MM

811079025951

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information PF30A-OUT-30MM

PF30A-OUT-30MM

The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 30mm spindle cranks in Cannondale PF30A (46mm ID, 73mm wide asymmetrical BB shell) frames.

Bottom Bracket Includes:

BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: Cannondale PF30A
Bottom Bracket Shell Width: 73mm Asymmetrical
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Weight: 158g
Packaged for retail display
* Over Bearing Width Dimensions inc

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter, 73mm shell width) with 30mm spindle cranks:
Cannondale PF30A

Note: Spindle length must be equivalent to a BB386 length.
