Product information PF30-THD-AC

PF30-THD-AC

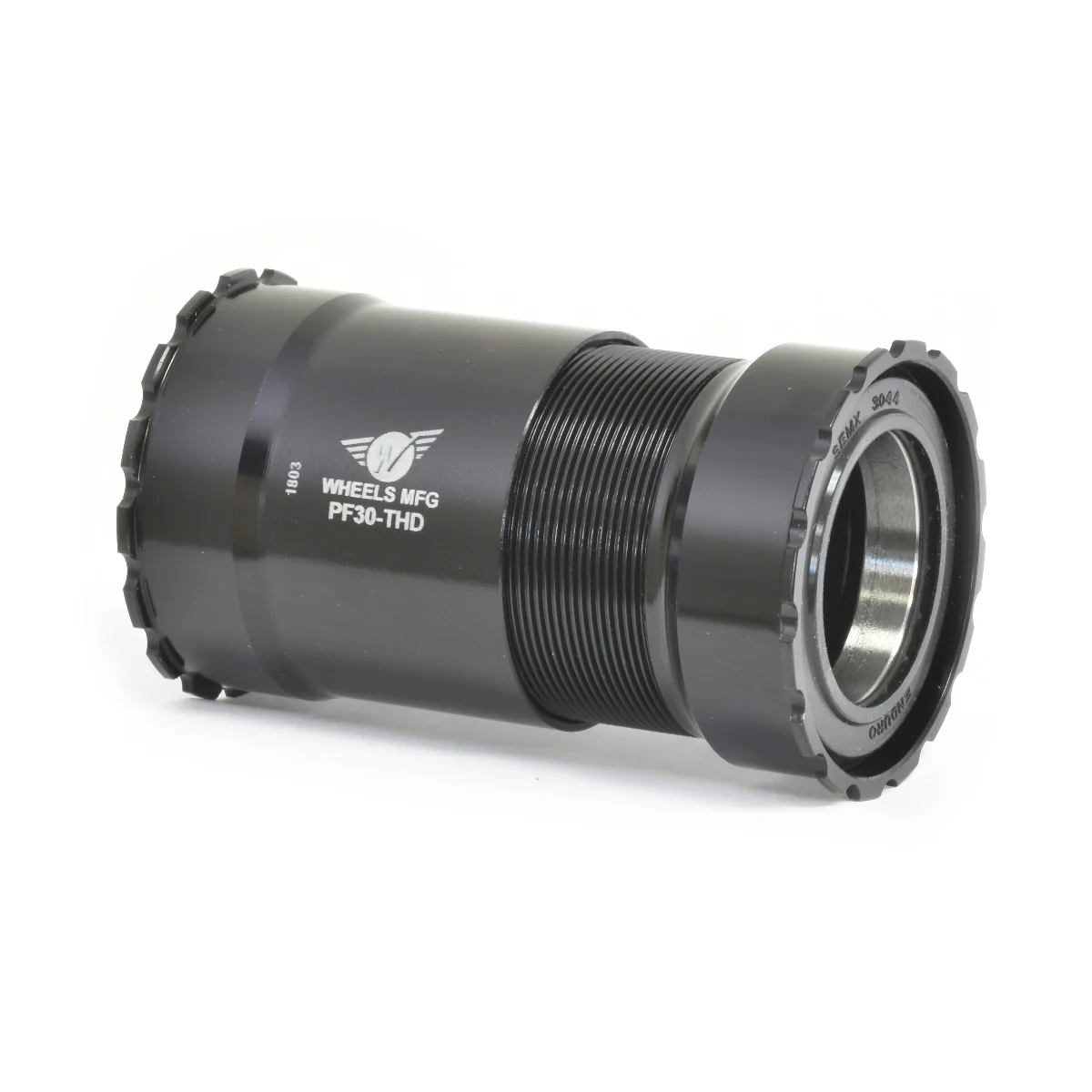

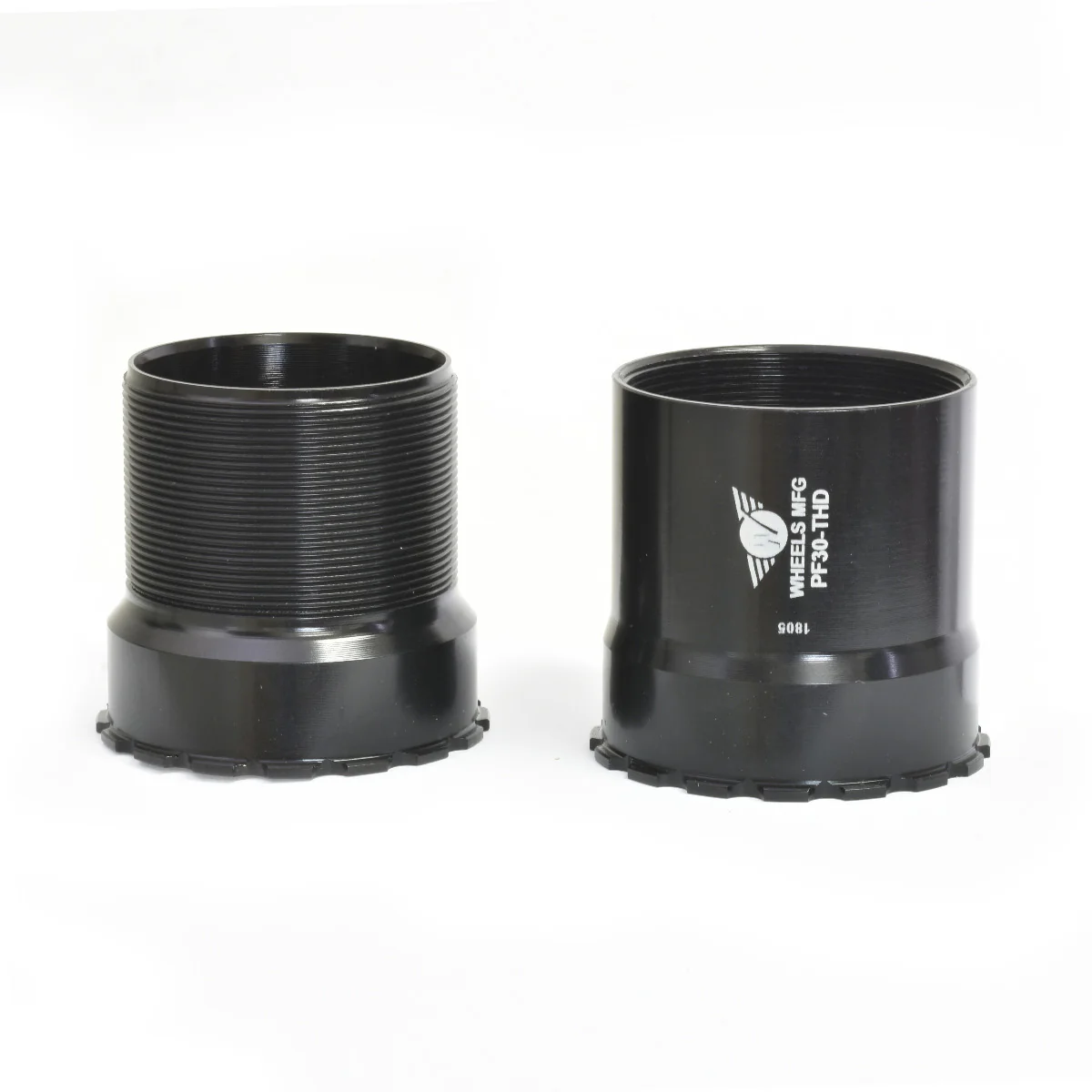

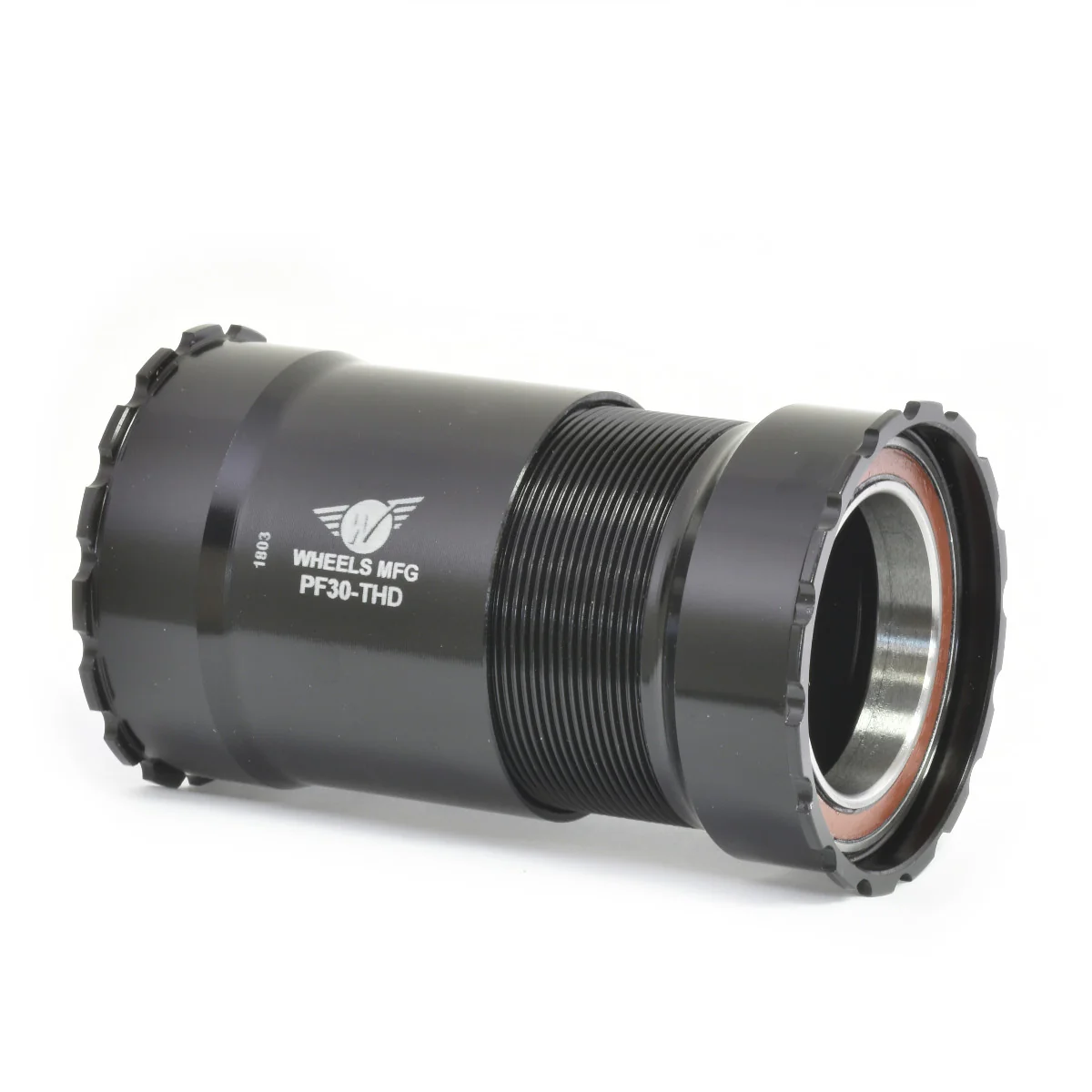

The best solution for replacing OEM PF30 bottom brackets or for new bike builds. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Bearings: Enduro Angular Contact
Color: Black
Bottom Bracket/Frame Interface: PF30, PF30A, BBRight™ Press Fit, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 79mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 68mm in 68mm wide shell
Crank Spindle Diameter: 30mm
Weight: 114g
Packaged for retail display

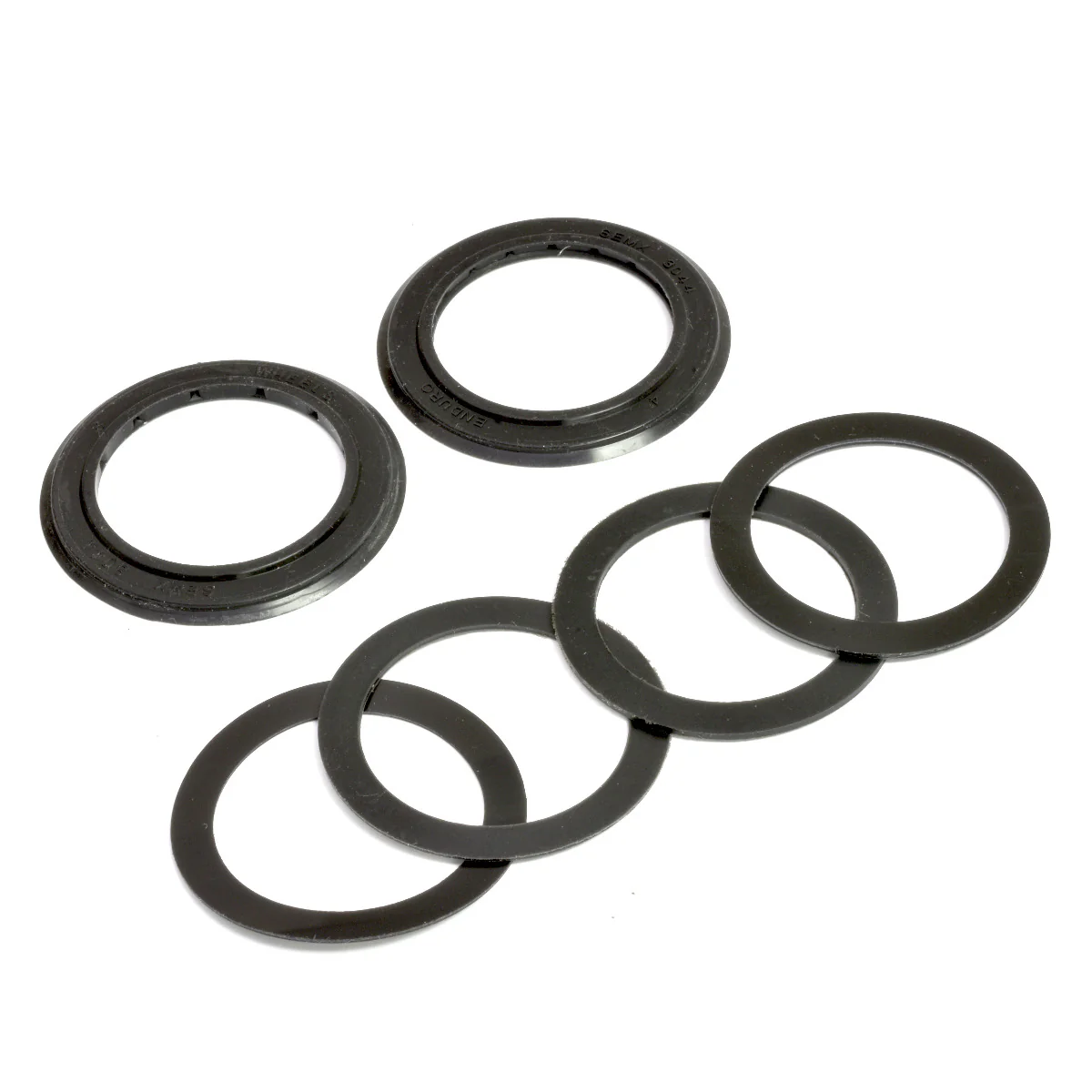

Will accept 24mm and 24/22mm cranksets using Wheels Mfg. adapter shims

* Specialized Carbon OSBB with 61mm shell width will need additional cup spacers.

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):
PF30
Cannondale PF30A
BBRight™ Press Fit
Specialized Carbon OSBB. May need additional cup spacers if BB shell width is 61mm.

Compatible with 30mm spindle diameter cranksets.

Download PDF information: 1766496583pf30-thd-instructions-web_206bca33-dd02-4d11-b793-2dfbb0a98011.pdf
