Article number: PF30-OUT-30MMAC
All mentioned prices in our webshop are included VAT

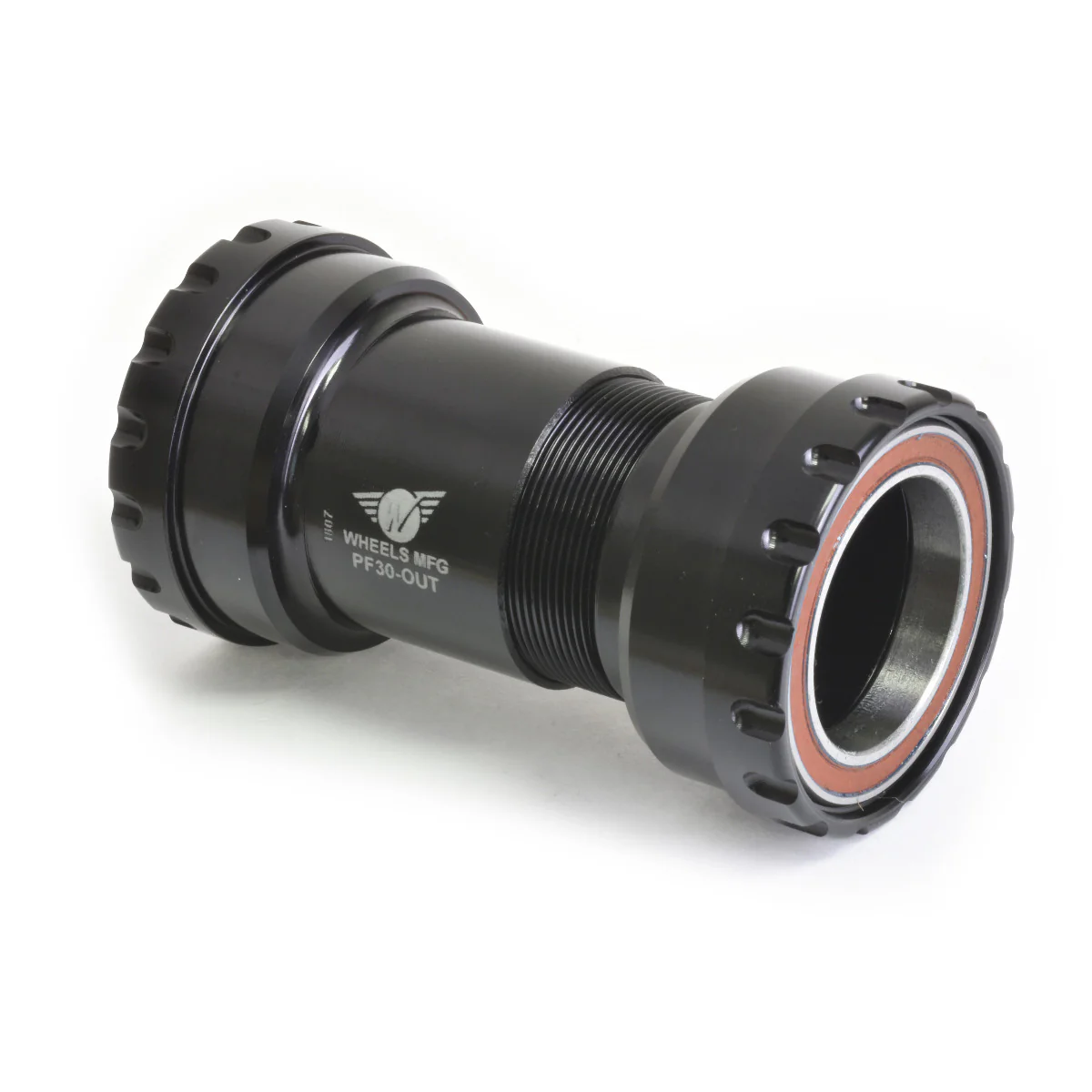

PF30-OUT-30MMAC
By popular demand, we\'ve added this PF30 with outboard bearing BB for use with 30mm spindle cranksets when used in PF30 frames. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.
Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.
Bearings: Enduro Angular Contact
Color: Black
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 83mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Weight: 151g
Packaged for retail display
* Specialized Carbon OSBB with 61mm shell width will need additional 3.5mm cup spacers.
Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):
Compatible with 30mm spindle diameter cranksets. Spindle length must be 103mm or longer when used in a 68mm wide shell, 109mm or longer when used in a 73mm wide shell.
Download PDF information: 1766490222pf30-out-30mm-instructions-web_2c13fbd0-67cc-4ca5-ae79-48cc0fb6d19f-(1).pdf
