PF30-OUT-30MM

€ 136,00

Brand: Wheels Manufacturing

Article number: PF30-OUT-30MM

811079024770

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information PF30-OUT-30MM

PF30-OUT-30MM

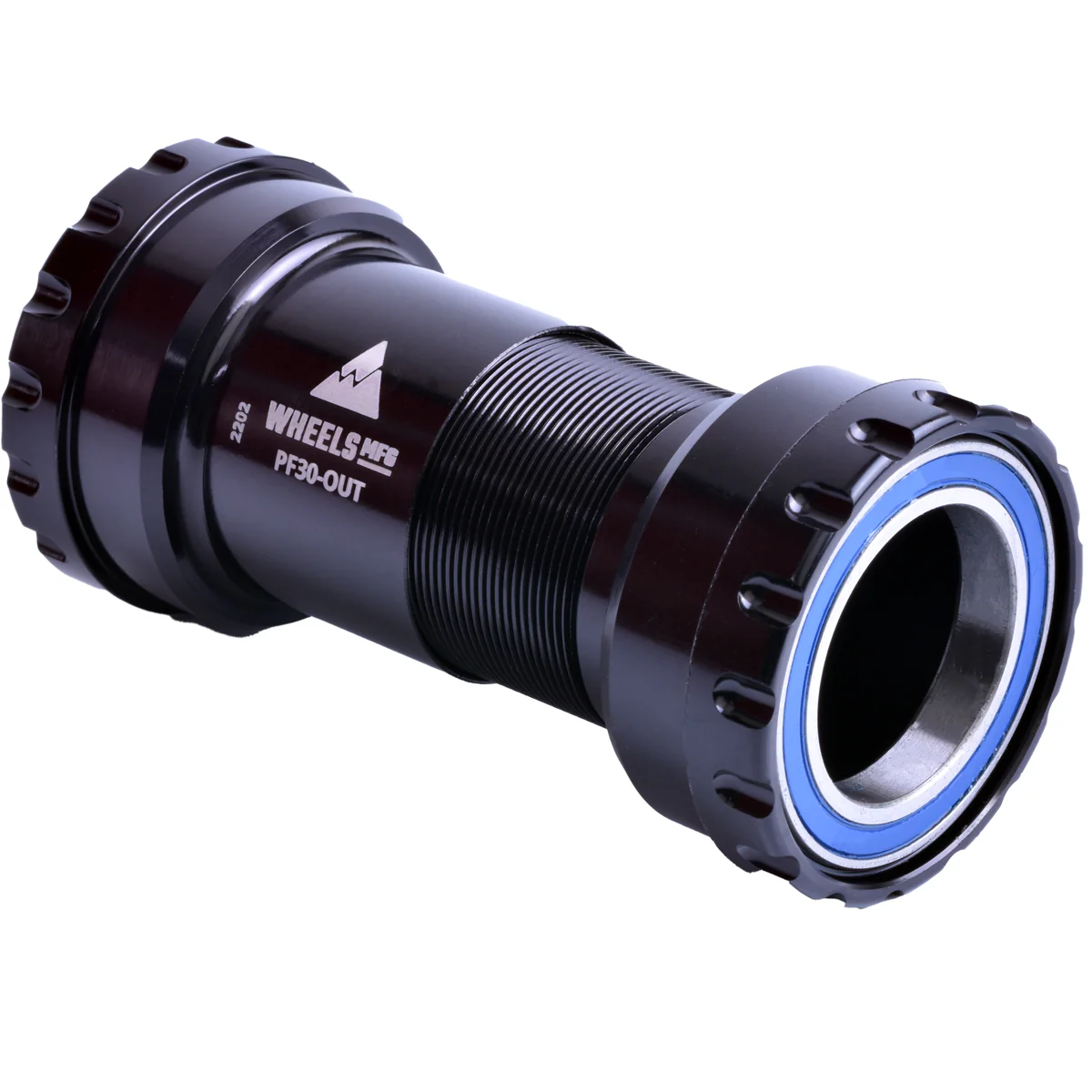

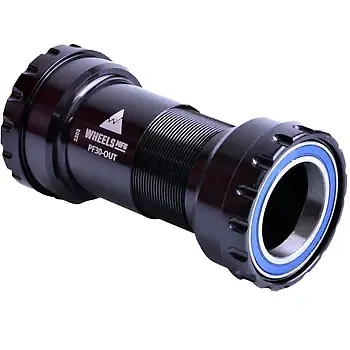

PF30 bottom bracket with outboard bearings for use with 30mm spindle cranksets. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Note: Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 83mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 30mm
Tool Pattern: 48.5mm x 16 notch
Weight: 151g
Packaged for retail display
* Specialized Carbon OSBB with 61mm shell width will need additional cup spacers.

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):
PF30
Specialized Carbon OSBB. May need additional cup spacers if BB shell width is 61mm.

Compatible with 30mm spindle diameter cranksets. Overall spindle length must be 103mm or longer when used in a 68mm wide shell, or 109mm or longer when used in a 73mm wide shell.

Download PDF information: 1766490040pf30-out-30mm-instructions-web_2c13fbd0-67cc-4ca5-ae79-48cc0fb6d19f.pdf
