PF30-OUT-29MM

€ 130,99

Article number: PF30-OUT-29MM

811079025357

The delivery time for this product may be longer than usual

All mentioned prices in our webshop are included VAT

Product information

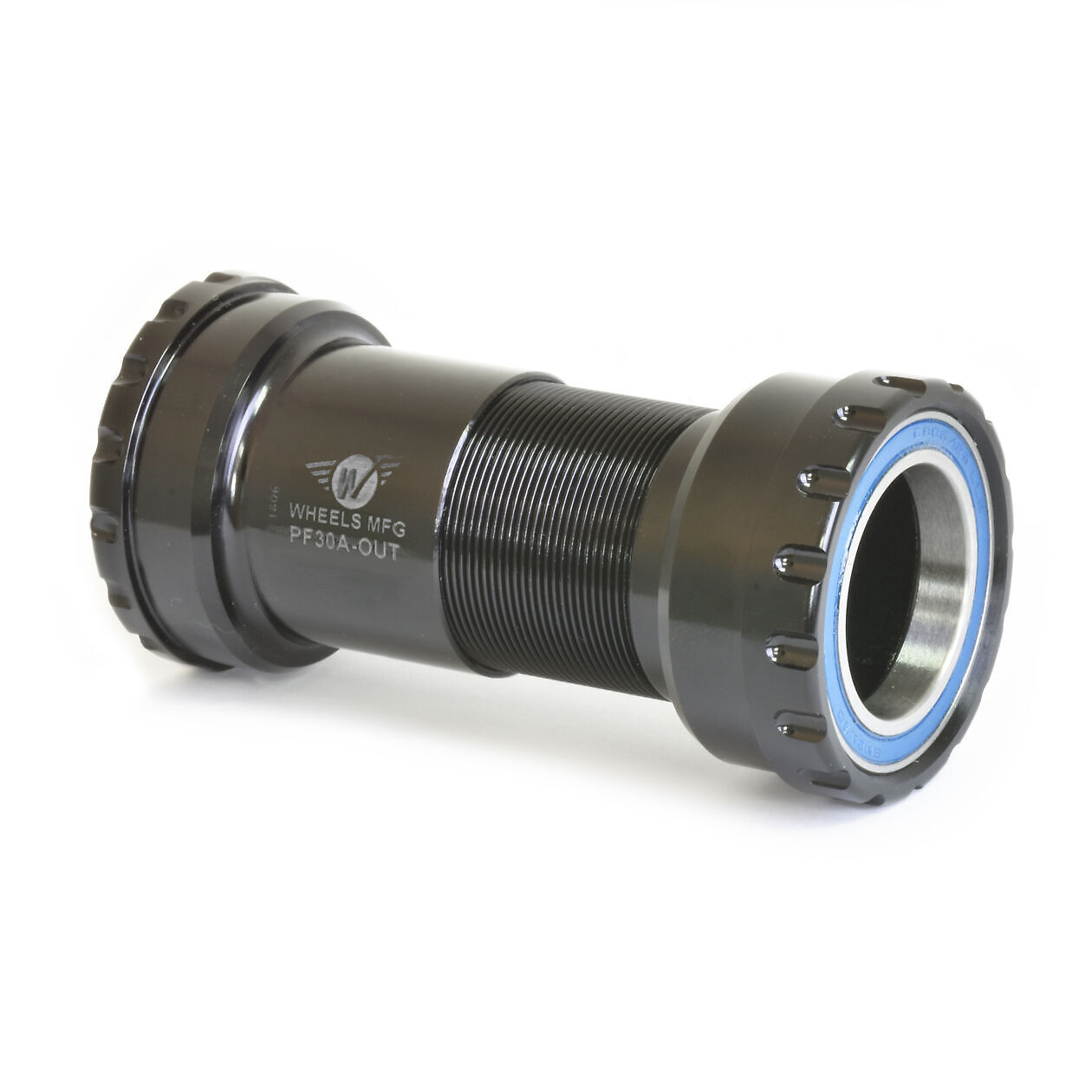

PF30 Outboard ABEC-3 BB for 29mm SRAM DUB Compatible Cranks - Black

PF30 with outboard bearing BB for use with 29mm spindle SRAM DUB compatible cranksets. The two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
Bottom Bracket Shell Width: 61mm* to 73mm
Bottom Bracket Shell I.D.: 46mm
Over Bearing Width: 89mm in 68mm wide shell
Crank Spindle Diameter: 29mm
Tool Pattern: 48.5mm x 16 notch
Weight: 156g
Packaged for retail display

* Specialized Carbon OSBB with 61mm shell width will need additional 3.5mm cup spacers.

- Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):

PF30
Specialized Carbon OSBB. Note: Specialized OSBB frames with 61mm shell width will need additional 3.5mm cup spacers.

Compatible with 29mm spindle diameter cranksets (SRAM DUB).

Download PDF information: 1741787232pf30-out-29mm-instructions.pdf
