BP0021

Product information BP0021

Thin Flange Bottom Bracket Socket - Pro Kit

Thin Flange Bottom Bracket Socket Pro Kit These sockets are designed to create a tight grip on thin flange bottom brackets to avoid slipping while torquing cups into bike frames. These single-sided sockets are used for installing and removing 48.5mm 16-notch, 52mm 16-notch and 50mm 12-notch bottom bracket cups.

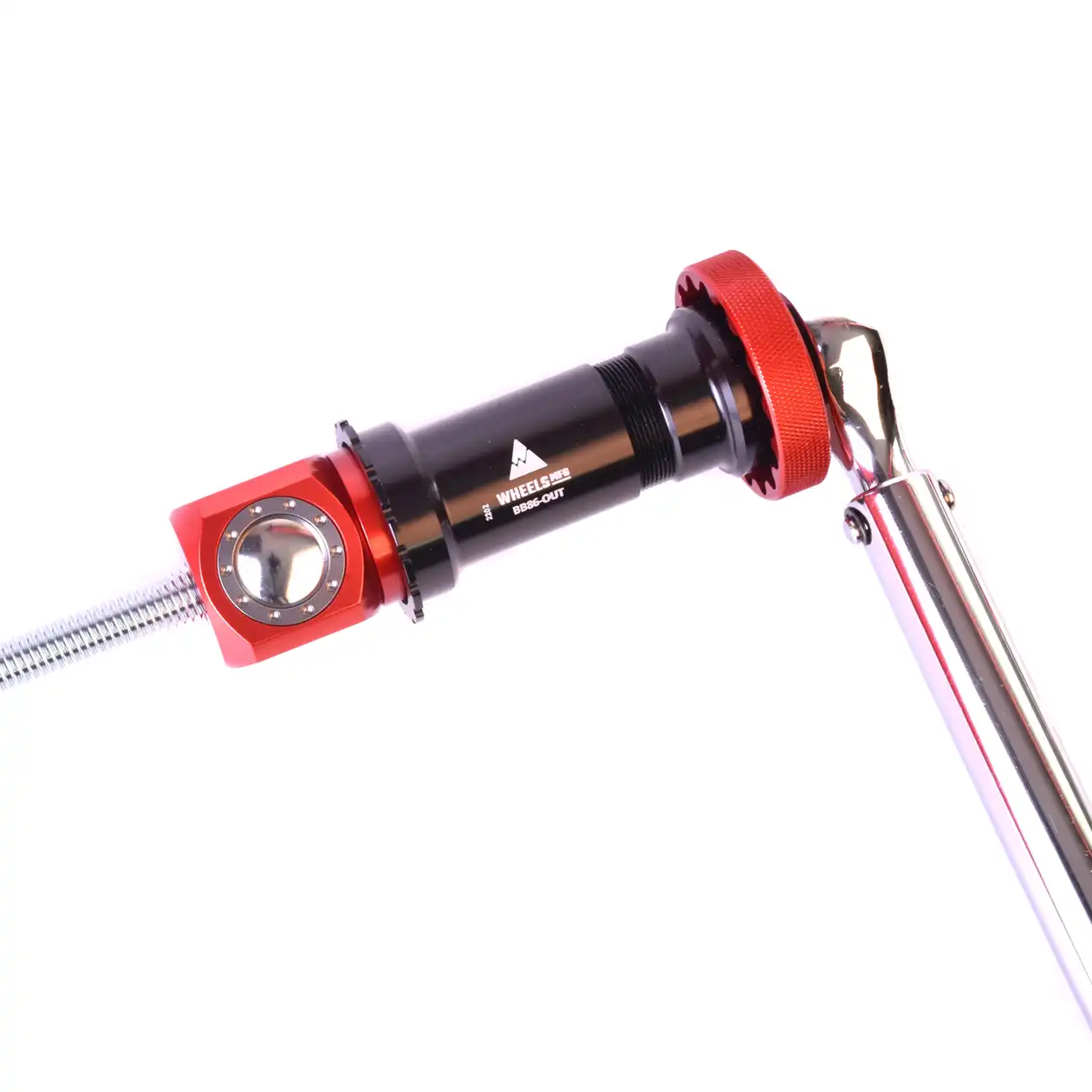

The sockets have a machined 3/8" drive, which can be used to allow 3/8" drive torque wrenches to be attached and threaded onto 1/2 inch UNC press rod for secure and easy installation of thin flanged bottom brackets. Machined 6061 Aluminum Anodized Red

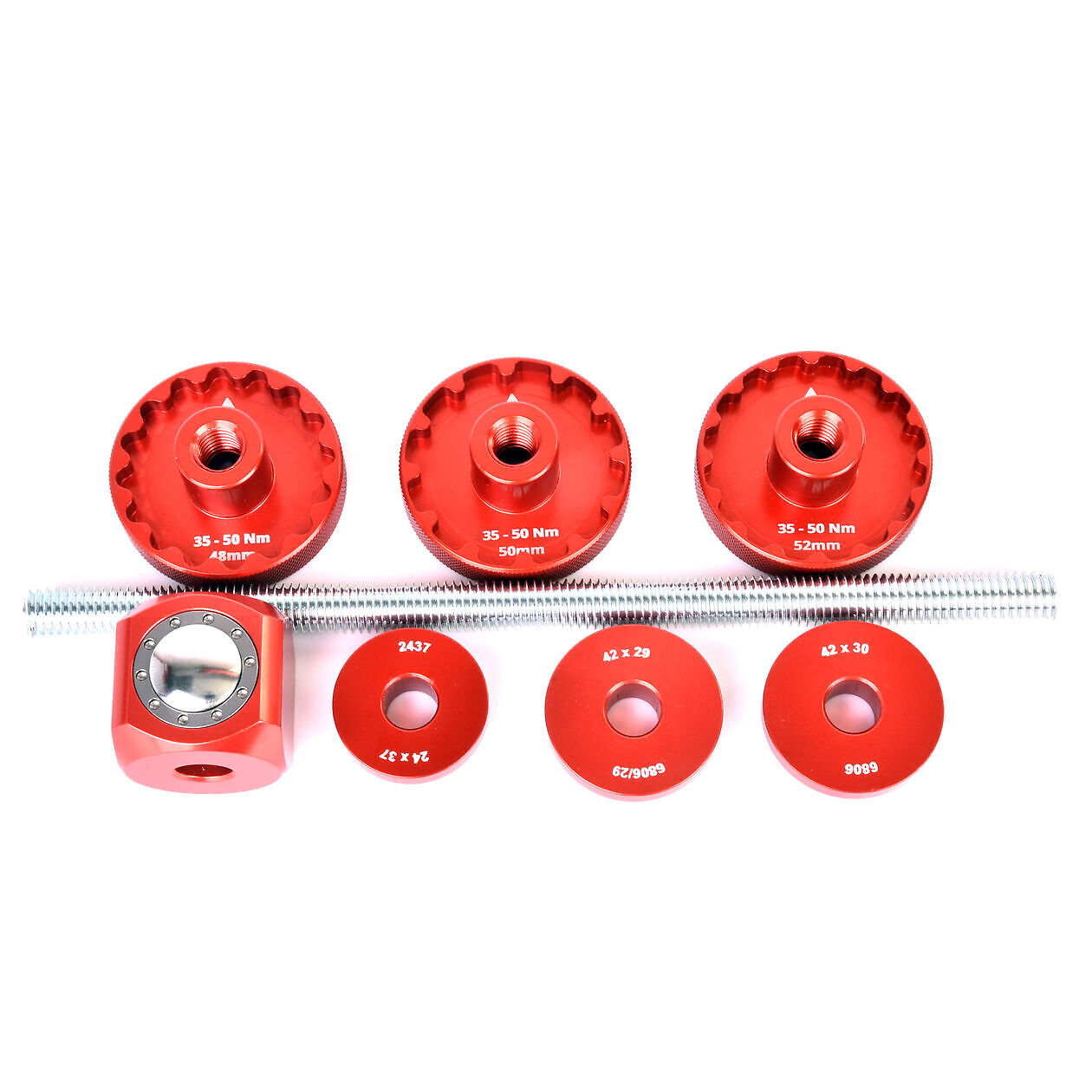

Kit includes:

(1) 1/2" UNC Threaded Rod

(1) 1/2" Adjustable Press Stop

(1) 6806/29 Bearing Drift

(1) 6806 Bearing Drift

(1) 24x37 Bearing Drift

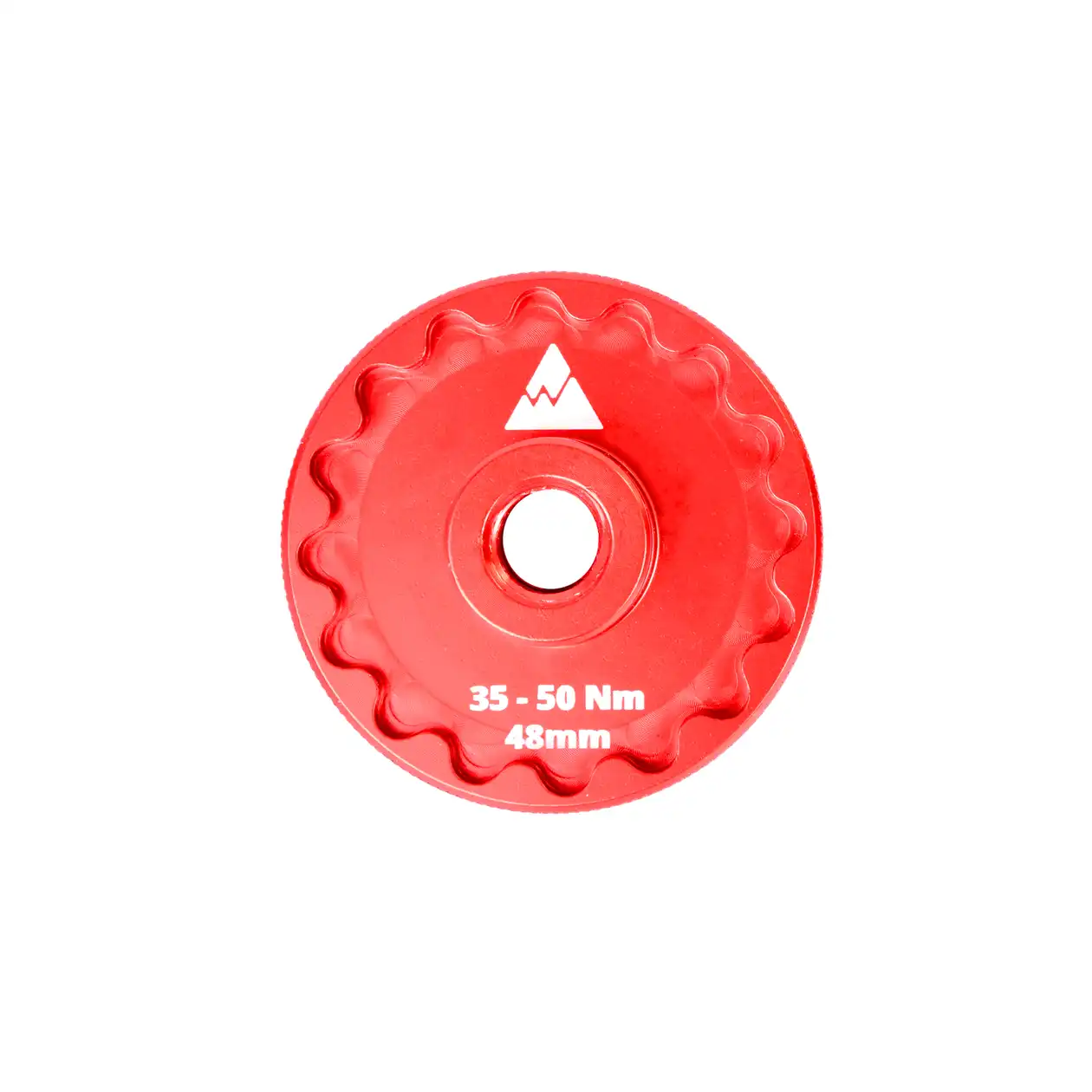

(1) Wheels MFG Thin Flange Bottom Bracket Socket for 48.5mm 16-notch pattern.

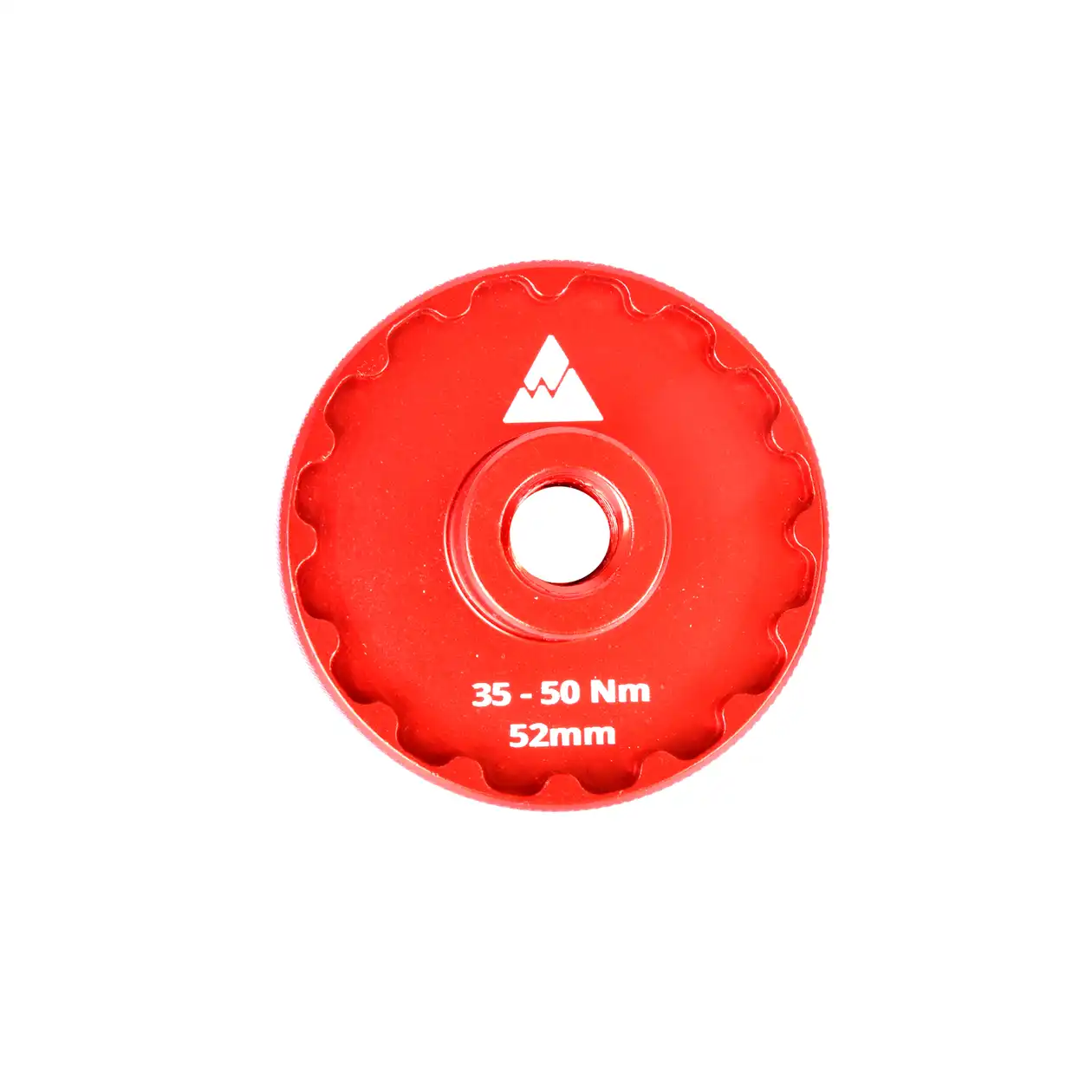

(1) SRAM Thin Flange T47 Bottom Bracket Socket for 52mm 16-notch pattern.

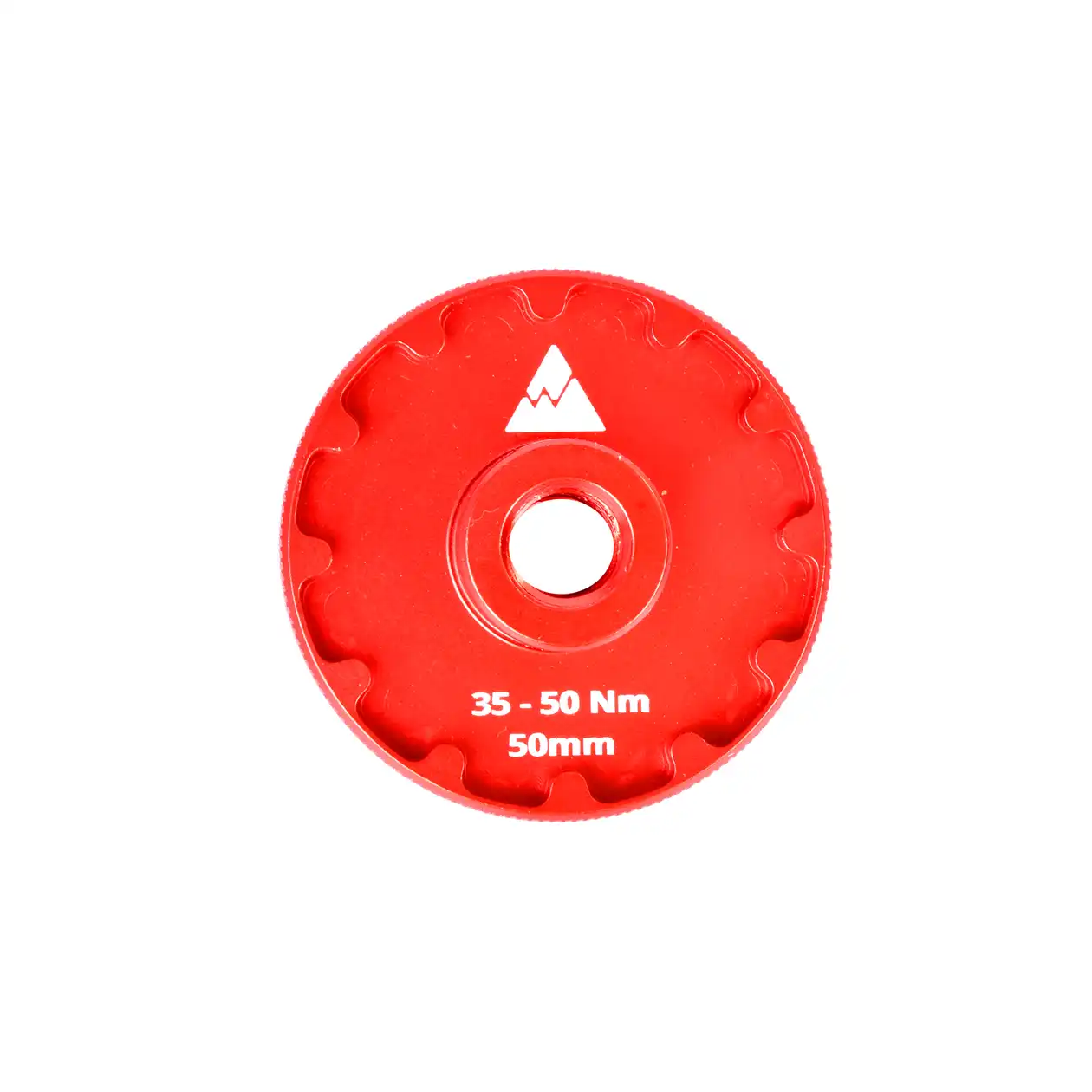

(1) Praxis Thin Flange T47 Bottom Bracket Socket for 50mm 12-notch pattern.

Compatible with:

• 1/2 UNC threaded Press Rod
• 3/8" drive torque wrenches

Compatible with all Wheels Manufacturing bottom brackets that have the following spline patterns:

• Thin Flange Bottom Brackets with 48.5mm 16-notch pattern
• SRAM Thin Flange T47 Bottom Bracket with 52mm 16-notch pattern.
• Praxis Thin Flange Bottom Bracket with 50mm 12-notch pattern.
