Product information BBRIGHT-OUT-9

BBRIGHT-OUT-9

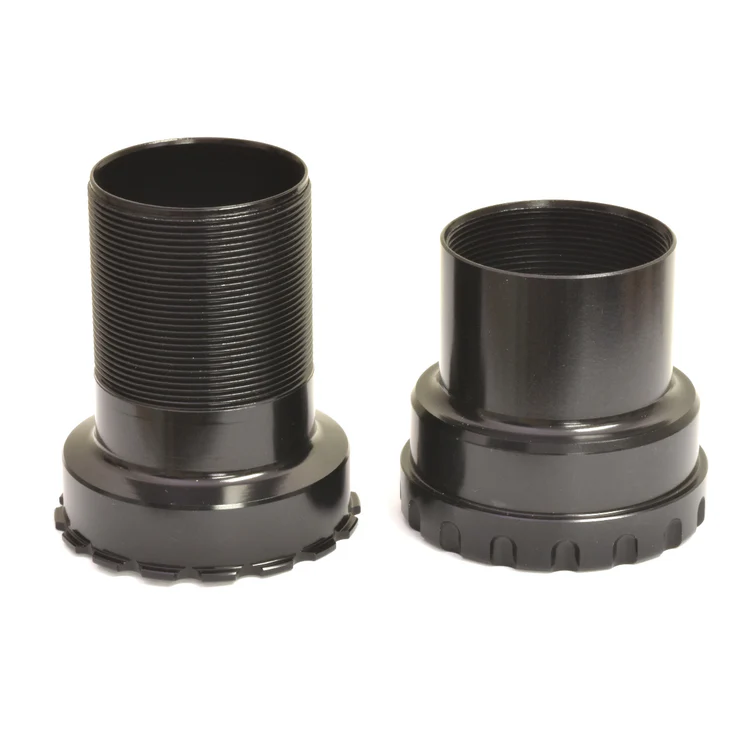

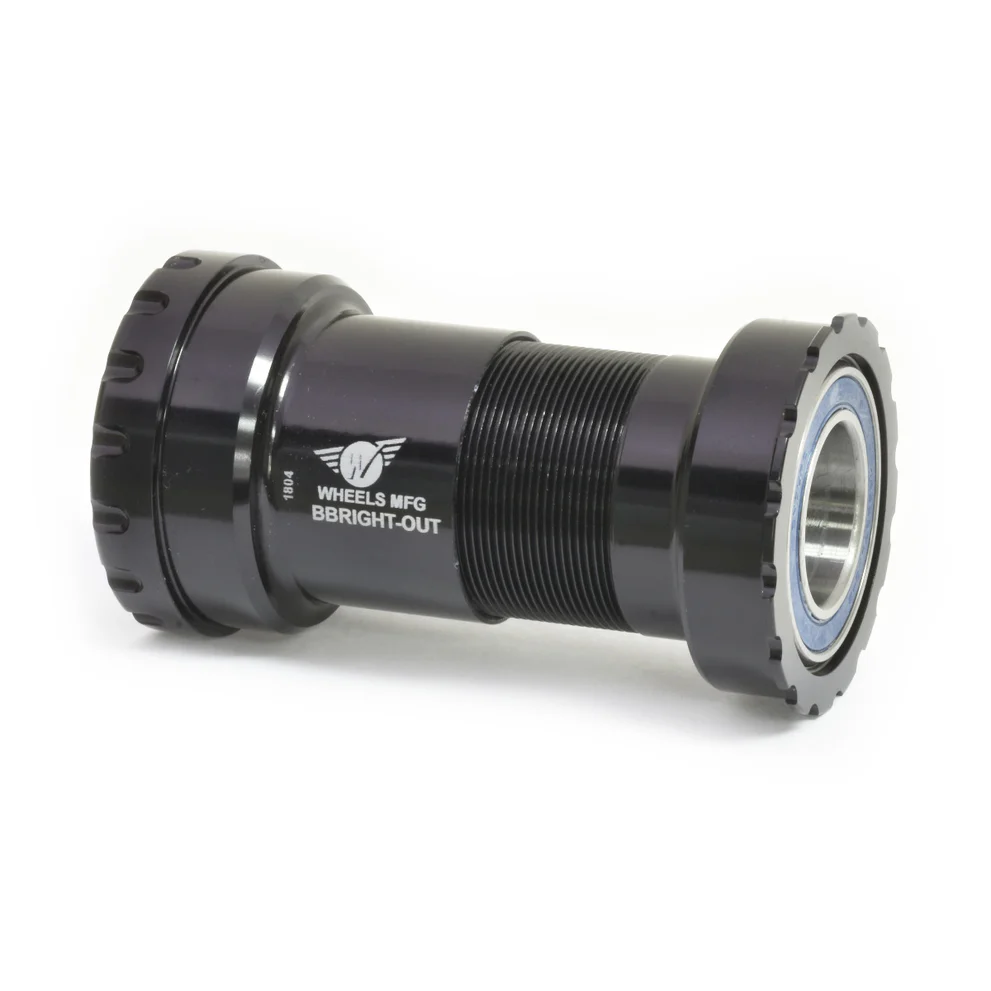

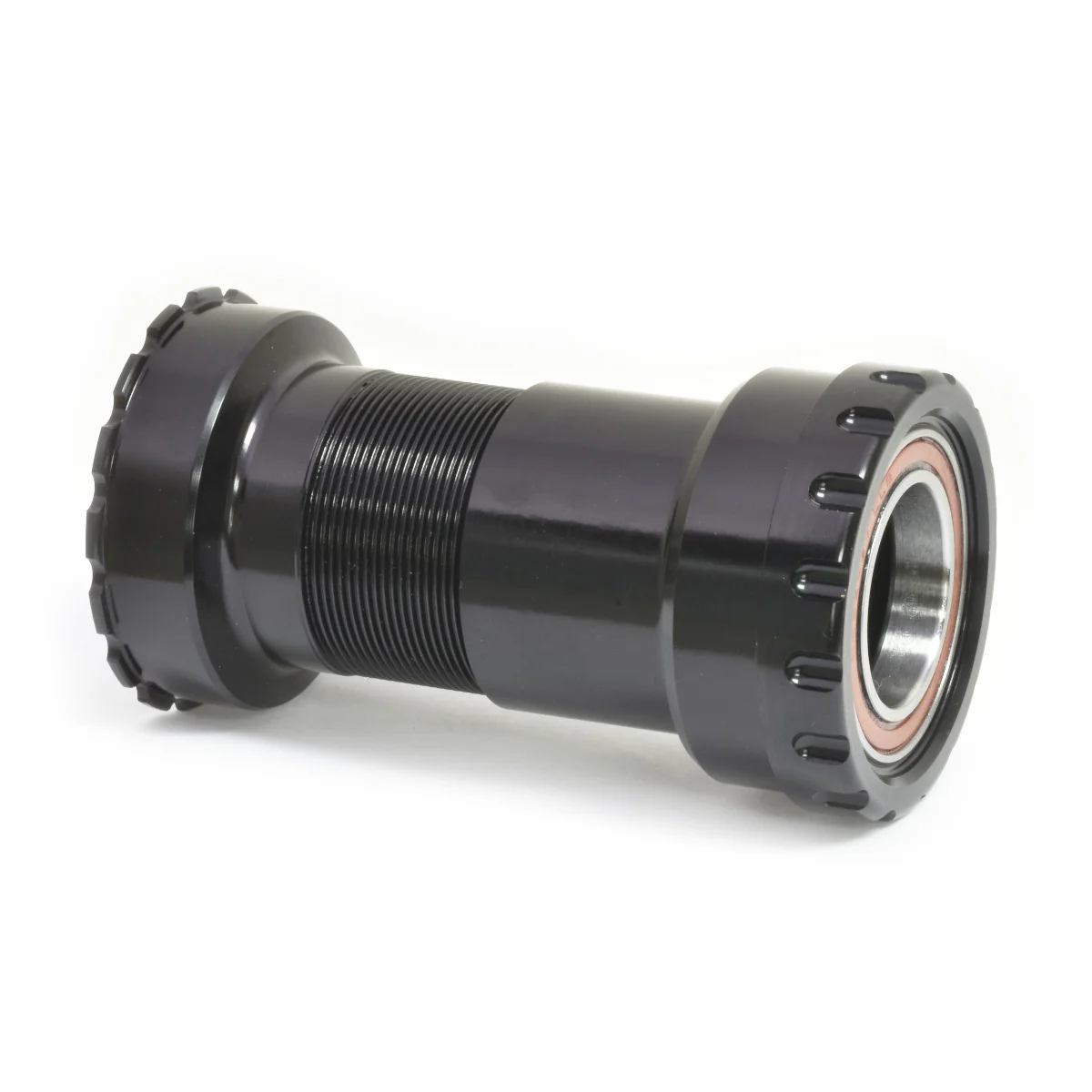

Thread together bottom bracket for frames using the BBRight™ bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

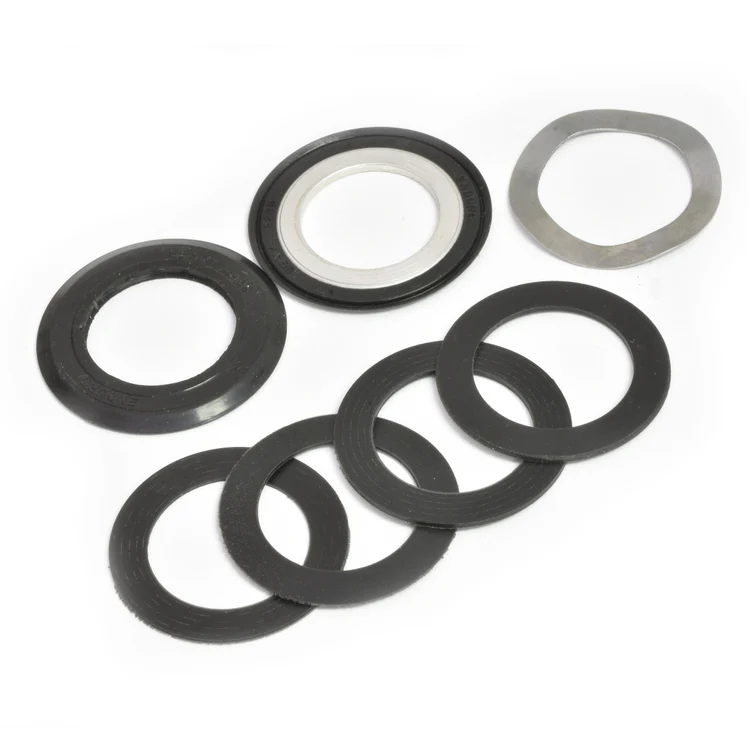

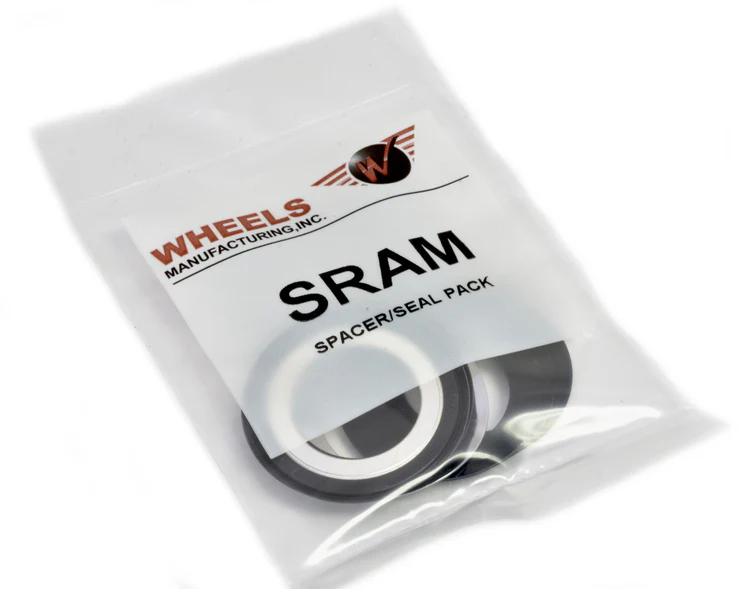

Bottom Bracket Includes:

BB Cups with bearings
2 - Silicone dust seals
2 - 0.5mm crank spindle spacers
2 - 1.0mm crank spindle spacers

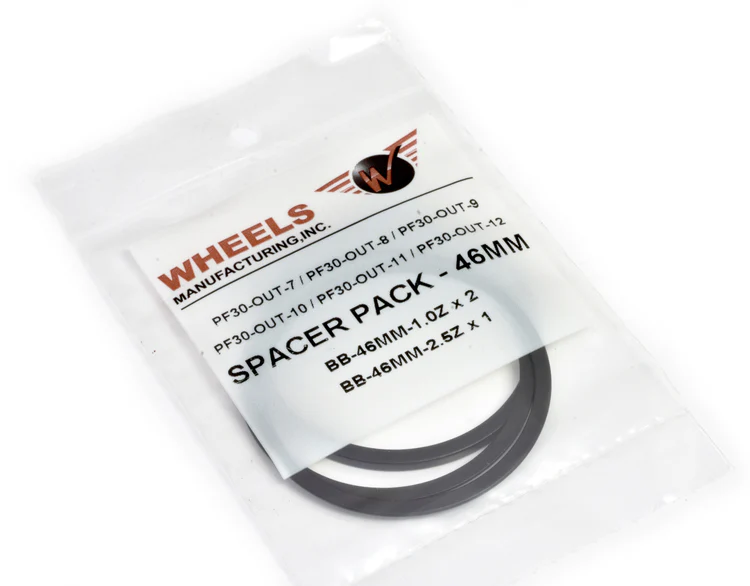

2 - 46mm x 1.0mm cup spacers
1 - 46mm x 2.5mm cup spacer
1 - wave washer

Notes:
Wheels Mfg BBRight™ Outboard BB for use with 24/22mm spindle cranks will not work with the following older Quarq SRAM/GXP powermeter cranksets: SRAM S975, SRAM S2275, CinQo Saturn, Saturn2, and Quatro. Please refer to the Compatibility tab below for more detailed info.


Drive Side Bearing: Enduro Angular Contact
Non-Drive Side Bearing: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: BBRight™ Press Fit
Bottom BracketShell Width: 79mm
Bottom Bracket Shell I.D.: 46mm
Crank Spindle Diameter: 22/24mm
Tool Pattern: 48.5mm x 16 notch
Over Bearing Width: 92mm in 79mm wide shell*
Weight: 165g
Packaged for retail display
* Over Bearing Width Dimensions include supplied silicone dust shields.

Wheels Mfg BBRight™ Outboard ABEC-3 BB for 24/22mm (SRAM) Cranks will not work with the following older Quarq SRAM/GXP powermeter cranksets:
SRAM S975
SRAM S2275
CinQo Saturn
Saturn2
Quatro

These cranks utilize an older power meter where the cadence sensor interferes with our bottom bracket cup diameter.

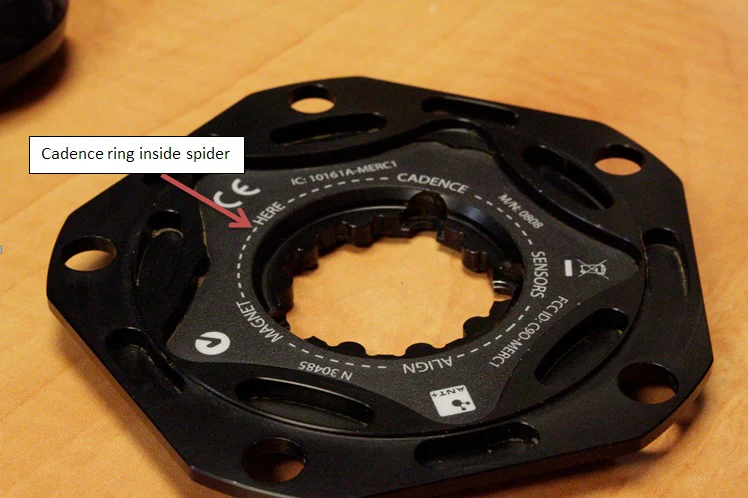

Newer Quarq power meter. Note the flatter cadence sensor ring. This powermeter is combatible with Wheels Mfg BBRight Outboard bottom brackets.

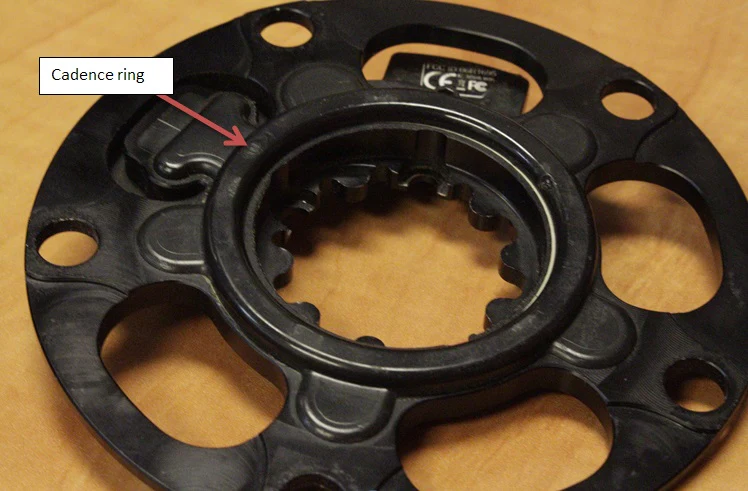

Older Quarq power meter. Note the protuding cadence ring. These power meters can also be identified as using a CR2450 battery. This power meter will not work with Wheels Mfg BBRight Outboard bottom brackets.
