BB86-FAT-SRAM7

€ 136,00

Article number: BB86-FAT-SRAM7

811079022776

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information BB86-FAT-SRAM7

BB86-FAT-SRAM7

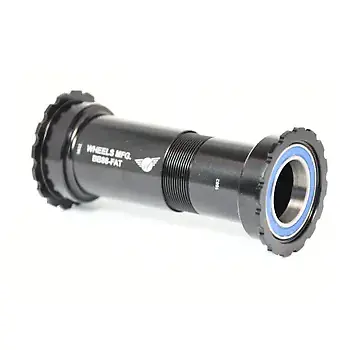

Threaded ABEC-3 bottom bracket for Fat Bike PF41 (BB121) and 22/24mm (SRAM GXP) cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. No more creaking. Smooth operation. Fast bearing replacement.

• Bearings: Enduro ABEC-3
• Color: Black
• Bottom Bracket/Frame Interface: PF41 - BB121
• Bottom Bracket Shell Width (mm): 105mm - 132mm
• Bottom Bracket Shell I.D.: 41mm
• Crank Spindle Type: SRAM / Truvativ GXP
• Crank Spindle Diameter: 22/24mm
• Tool Interface: 48.5mm, 16-notch
• Weight: 120g

Includes:

• 1 - Silicone Dust Seal, 24mm ID Drive Side
• 1 - Silicone Dust Seal, 22mm ID Non-drive Side
• 1 - 24MM Wave Washer
• 2 - 0.5mm, 24mm ID Crank Spindle Spacer
• 2 - 1.0mm, 24mm ID Crank Spindle Spacer

This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter, with a width of 121mm. If used on a shell with a 132mm width, the cups will overlap 3 threads max.

Compatible with the following Bottom Bracket Standards:

• PF41 - BB121

Compatible Crank Spindle Type: SRAM / Truvativ GXP (22/24mm spindle diameter)
