BB30-OUT-9

€ 168,00

Article number: BB30-OUT-9

811079020451

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information BB30-OUT-9

BB30-OUT-9

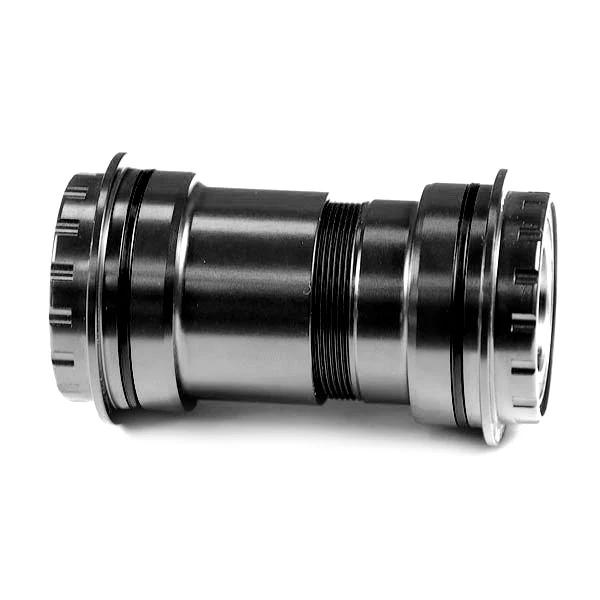

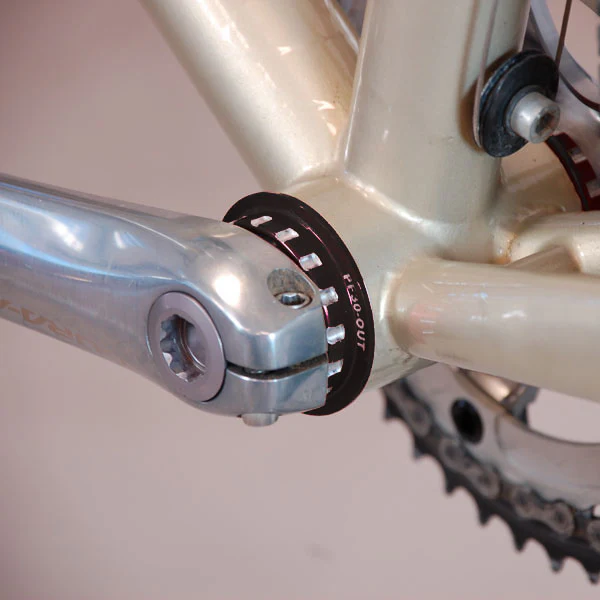

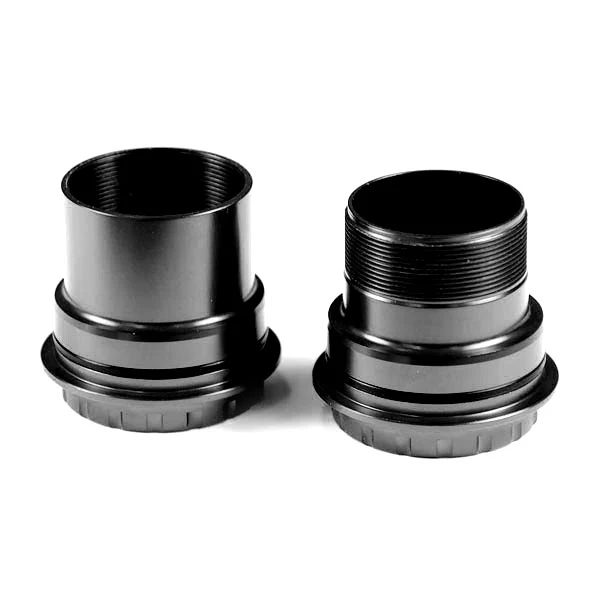

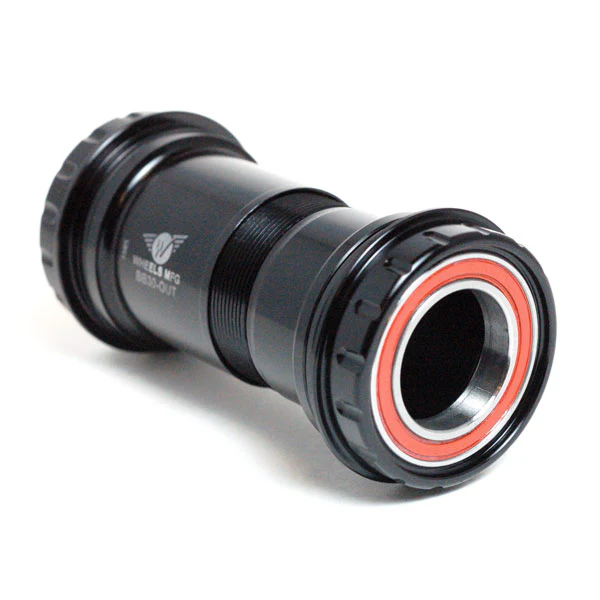

Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 22mm/24mm spindle diameter cranks (SRAM / Truvativ GXP) in BB30 (42mm ID BB shell) frames without the need for any adapters.

• Non-Drive Side Bearing: Enduro Angular Contact
• Drive Side Bearing: Enduro ABEC-3
• Color: Black
• Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
• Bottom Bracket Shell Width: 68mm - 73mm
• Bottom Bracket Shell I.D.: 42mm
• Over Bearing Width: 91.0mm in 68mm wide shell*
• Crank Spindle Diameter: 22mm/24mm
• Tool Pattern: 44mm, 16-notch
• Weight: 145g
• Packaged for retail display

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (42mm BB shell inner diameter):

• BB30
• Specialized Alloy OSBB

Compatible with 22/24mm stepped spindle diameter cranksets, like SRAM & Truvativ GXP.

Download PDF information: 1765974980bb30-out-gxp-instructions-web.pdf
