Article number: BB-T47A-GXP
All mentioned prices in our webshop are included VAT
BB-T47A-GXP

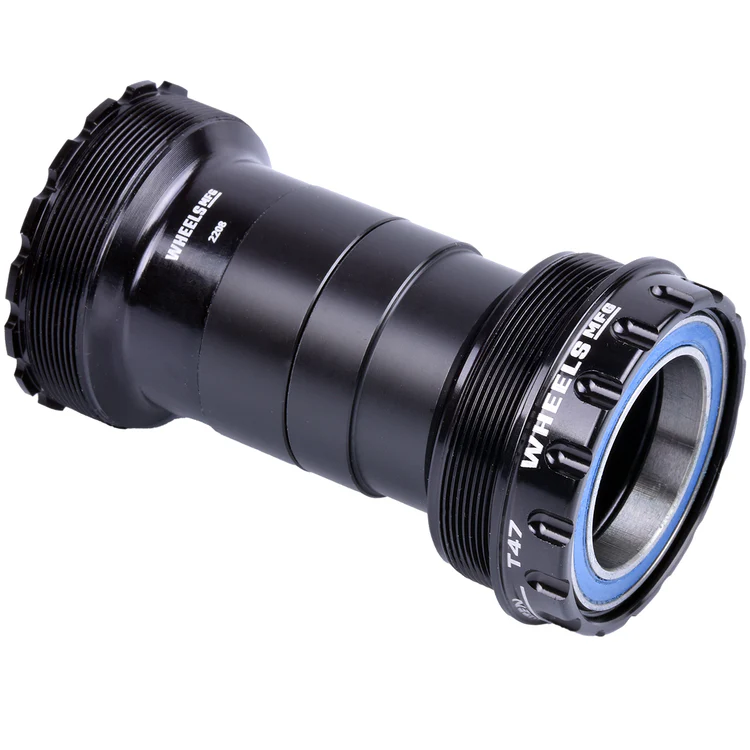

T47a (asymmetrical) threaded BB cups for T47a frames and 22mm/24mm diameter spindle GXP compatible cranks. Cups have internal bearings, and can be used in BB shells with widths from 77.5 - 79mm. Machined aluminum cups thread together directly into a Cervelo, Factor and Felt T47a BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle. T47a BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.
T47 external cup on the drive side
T47 internal cup on the non-drive side
Compatibility
Cervelo T47a 79mm shell width
Factor T47a 77.5mm shell width
Felt T47a 77mm shell width
Bearings: Enduro ABEC-3
Color: Black
Bottom Bracket/Frame Interface: T47a
Bottom Bracket Shell Width (mm): 77.5 - 79
Bottom Bracket Shell I.D.: 47x1.0mm Threaded
Crank Spindle Diameter: 22mm/24mm GXP
Over Bearing Width:
Tool Pattern: 48.5mm x 16-notch
Weight: 30kg
Packaged for retail display
* Over Bearing Width Dimensions include supplied silicone dust shields.
Download PDF information: 1766414717t47_bb_cup_dimensions_e60f8878-70f7-4d3c-98f4-49679aba74c8.pdf
