BB-ITA-30MM
€ 132,00
Article number: BB-ITA-30MM
810124711061
The delivery time for this product may be longer than usual
All mentioned prices in our webshop are included VAT
Product information BB-ITA-30MM
BB-ITA-30MM

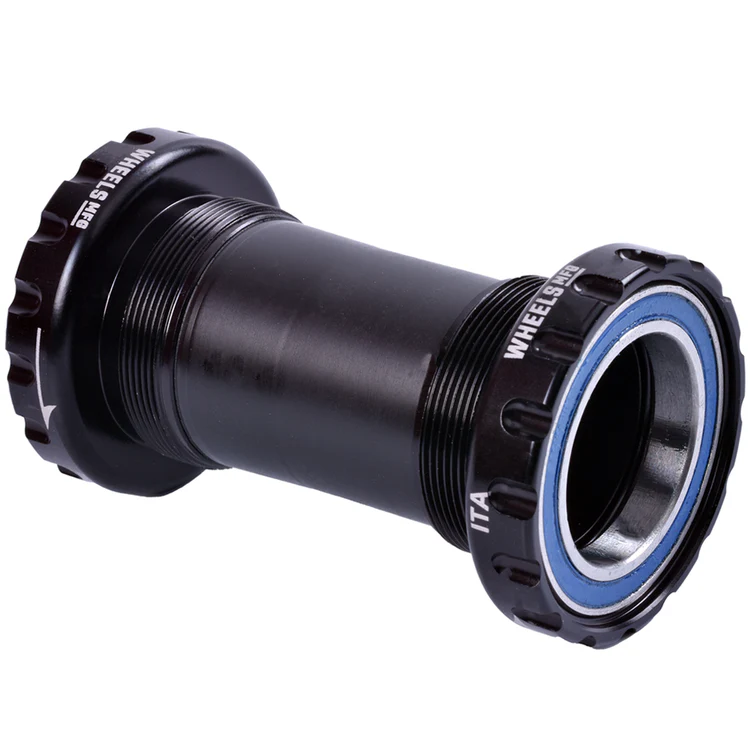

Our solution for running a 30mm spindle crankset in a Italian threaded frame. Machined aluminum cups thread in to a standard threaded frame and feature 6806 ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.
Notes:
- For use with 30mm diameter cranks with a spindle length of at least 106mm when used in a 70mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
- Will not work with standard BB30 cranksets. PLEASE MEASURE YOUR BB30 CRANK SPINDLE LENGTH!
- Bearings: 6806 ABEC-3
- Color: Black
- Bottom Bracket/Frame Interface: Italian Threaded (36mm x 24 threads per inch TPI)
- Bottom Bracket Shell Width (mm): 70mm
- Bottom Bracket Shell I.D.: 36mm
- Crank Spindle Diameter: 30mm
- Tool Pattern: 48.5mm x 16-notch
- Over Bearing Width:
- Weight: 102g
- Packaged for retail display
*Over Bearing Width Dimensions include supplied silicone dust shields.
Compatible with the following Bottom Bracket Standards:
- Italian Threaded (36mm x 24 TPI)
- 70mm BB Shell Width
- Notes:
- Compatible with 30mm diameter spindle cranksets with at least 106mm spindle length when used in a 70mm wide BB shell. This is the overall spindle length with all spacers and adjusters removed from the spindle. Measurement is taken from the inside face of the crank arm to the very end of the spindle.
