BB-ITA-29MM

€ 133,00

Article number: BB-ITA-29MM

810124711054

The delivery time for this product may be longer than usual

Shopping cart

All mentioned prices in our webshop are included VAT

Product information BB-ITA-29MM

BB-ITA-29MM

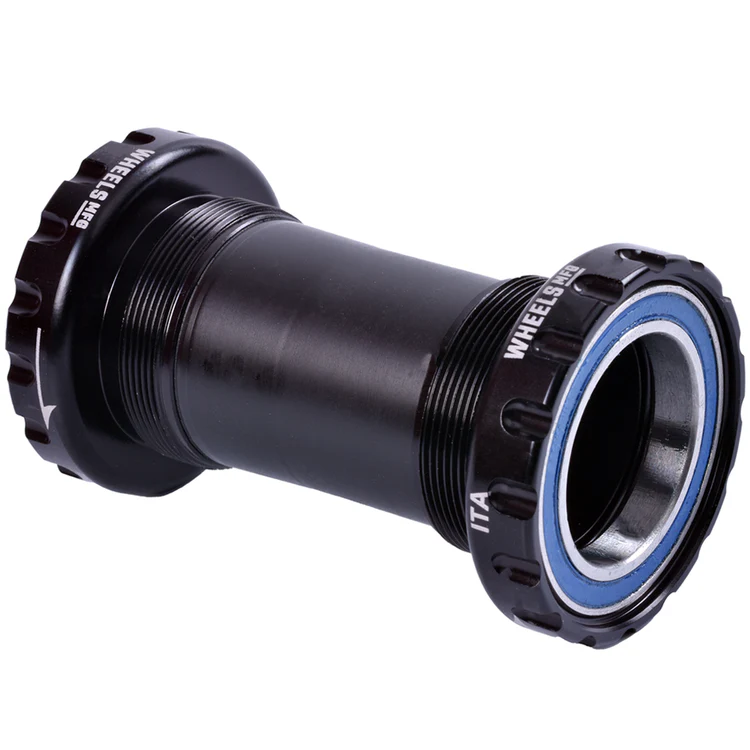

Compatible with all bikes adhering to Italian Standard bottom bracket shells. Right hand threaded for both shells, 36mm x 24 threads per inch. Machined aluminum cups thread in to a standard Italian threaded frame and feature ABEC-3 sealed bearings outboard of the BB shell. Fully serviceable.

Bottom Bracket Includes:

BB Cups with bearings

• 2 - Silicone dust seals
• 2 - 0.5mm crank spindle spacers
• 2 - 1.0mm crank spindle spacers
• 1 - 2.5mm crank spindle spacer
• 1 - 5mm crank spindle spacer

• Bearings: 6806/29 ABEC-3
• Color: Black
• Bottom Bracket/Frame Interface: Italian Threaded (36mm x 24 threads per inch TPI)
• Bottom Bracket Shell Width (mm): 70mm
• Bottom Bracket Shell I.D.: 36mm
• Crank Spindle Diameter: 29mm
• Tool Pattern: 48.5mm x 16-notch
• Over Bearing Width:
• Weight: 102g
• Packaged for retail display

*Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards and SRAM DUB compatible cranks with 29mm diameter spindle:
Italian Threaded (36mm x 24 TPI)
70mm BB Shell Width
